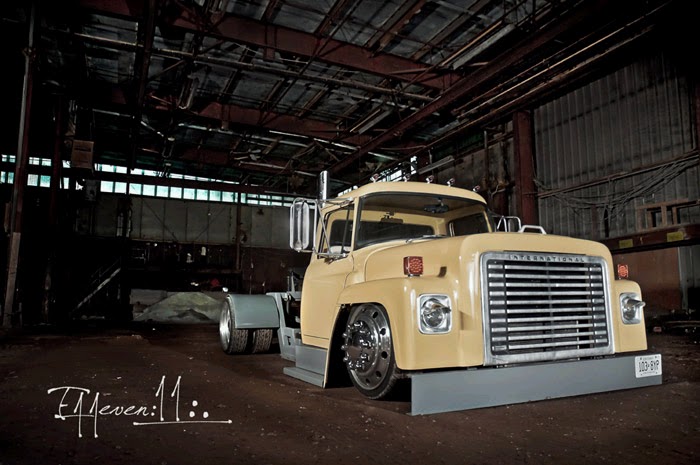

1977 International Loadstar

1977 International Loadstar 1600 – Complete Mods List


Chassis/suspension

-Full frame custom built
-3X6 ¼” wall, fully sealed and used as air tank (25 gallons)
-3 link front with custom solid beam suspension
-front hubs and brakes from 1991E350
-3 link rear with Sterling 10.25 differential
-10,000lb transport truck bags at all 4 corners
-3/8” air valves, ½” hard line
-digital air gauge
-york engine driven compressor
-5th wheel hitch
-dual fuel tanks custom built
Drivetrain

-7.3L Ford IDI diesel from 1991E350
-Ford E4OD transmission
-2001 Dodge intercooler
-2002Ford powerstroke turbo on custom manifolds
-massive transmission cooler
-turbo code injectors
-injection pump turned up and timing advanced
-5” exhaust to 5” slant cut stack
-3” intercooler piping powdercoated cream
-holley red electric fuel pump

Exterior

-floor and firewall from scratch
-suicide doors with fabricated hinges
-shaved door handles
-welded and smooth front body seams
-pedestal mount cab lights
-LED front and rear lighting
-HID headlights
-chrome visors over all lights
-cargo basket
-painted Chrysler classic yellow
Interior

-smoothed and painted dash
-seat from 1993 Chevy truck recovered by owners wife
-autometer gauges for- speedometer, tachometer, boost, egt, trans temp, oil pressure, coolant temp, volts, fuel level
-alpine stereo in glovebox
-soundstream 5 channel amp
-RE Audio 6.5” speakers
- 2 12” RE Audio subs
-triple trumpet air horns
Wheels and tires

Front wheels- 22.5” semi wheels milled to 22”
Front tires- 255/35zr22 Falken FK452
Rear wheels- 24.5” semi wheels milled to 24”
Rear tires- 255/30zr24 Falken FK452
Custom adapters

Thanks to Steve Wharton – E11even:11: Photography

Original: Kustom Gonzo ©
